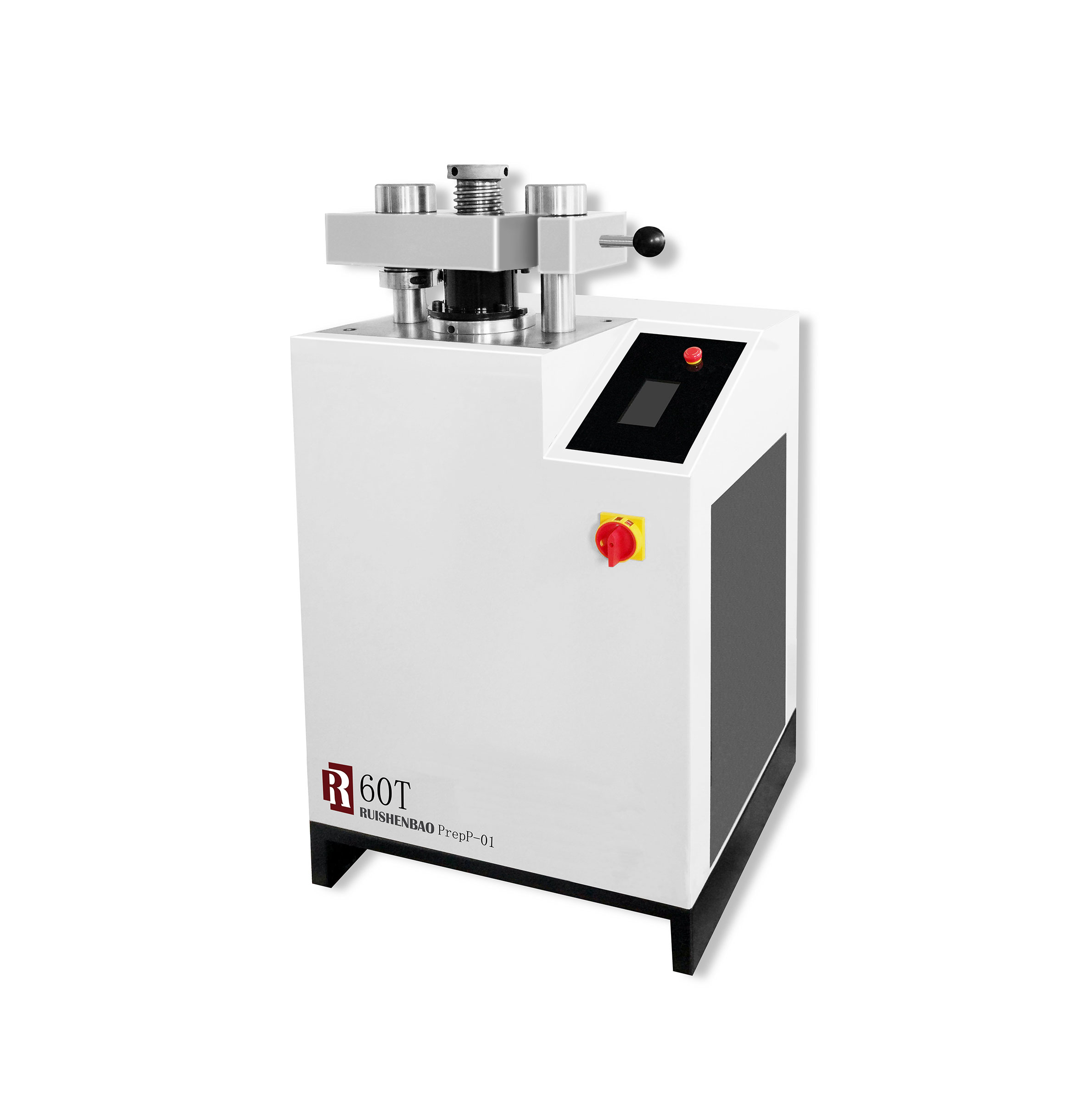

Fully Automatic Hydraulic Pelletizing Press: PrepP-01
  • PrepP-01全自动液压压力机--40T
  • PrepP-01全自动液压压力机--60T
  • PrepP-01全自动液压压力机--80T
  • 40T专用钢环模具
  • 硼酸模具
  • PrepP-01全自动液压压力机--40T
  • PrepP-01全自动液压压力机--60T
  • PrepP-01全自动液压压力机--80T
  • 40T专用钢环模具
  • 硼酸模具

Overview:

The PrepP-01 series of automatic hydraulic press offers the full benefits of program-controlled sample preparation for x-ray fluorescence analysis. A swing-out cross-head makes filling and cleaning of the die quick, simple and safe. A number of pressing variables can be selected, depending on the press tool employed. Precision press tools with a range of diameters and materials permit free pressing. Pelletizing parameters such as total pressing force, incremental increase and decrease of pressure as well as pressure holding time can be easily operated through a touch-screen LCD display. The pressure increase and decrease during pelletizing are controlled such that inner stresses within the sample are reduced. This allows the production of perfect pellets even with complicated sample material. The pelletizing process is controlled by the PLC program. This leads to substantial improvement in reproducibility of sample preparation and consequently more precise analysis results. The PrepP-01 pellet press is a high-quality, precision engineering product with compact dimensions. It produces high-quality pressed pellets with mirrorlike surface necessary for optimal XRF results. It is ideally suited for laboratory requirements.

Features:

3 specifications for your selection: 40T, 60T and 80T;

Easy controlling, pelletizing process is controlled directly, reliably and continuously by the PLC program;

Press tools with a range of diameters and materials: boric acid, steel ring, aluminum cup, plastic ring and low-pressure polythene;

Touch-screen LCD user interfaced; all operations and programming are through touch-screen entries;

A swing-out cross-head makes filling and cleaning of the die quick, simple and safe;

Produce high-quality pressed pellets with a mirrorlike surface;

Best quality/price ratio in the market.

Fields of application:

Geology: ore, dust, slag;

Kiln: cement, limestone, dolomite, glass, quartz, clay;

Metallurgy: iron ore, coal, sinter, pellet, blast furnace and electric furnace slags;

Nonferrous: alumina, bauxite, copper ore;

Chemicals: catalyst, polymer;

Soil: rock, various soils;

Research Institutes: manufacture of reference materials.

For more information, please contact us by email: info@ruishenbao.com

Technical data:



Model

40T

60T

80T

Operating temperature

0-40

Programmable controller

PLC

Hydraulic oil

Antiwear hydraulic oil 46#

Voltage

AC 380V±10%, 50 Hz, 10A, 3-phase five-wire

Power draw

1.5kWMaximum pressure

Pressing in shells

Standard diameter 40 mm and optional other sizes

Dimensions(L×W×H)

610×500×920mm

Net weight

350kg

410kg
