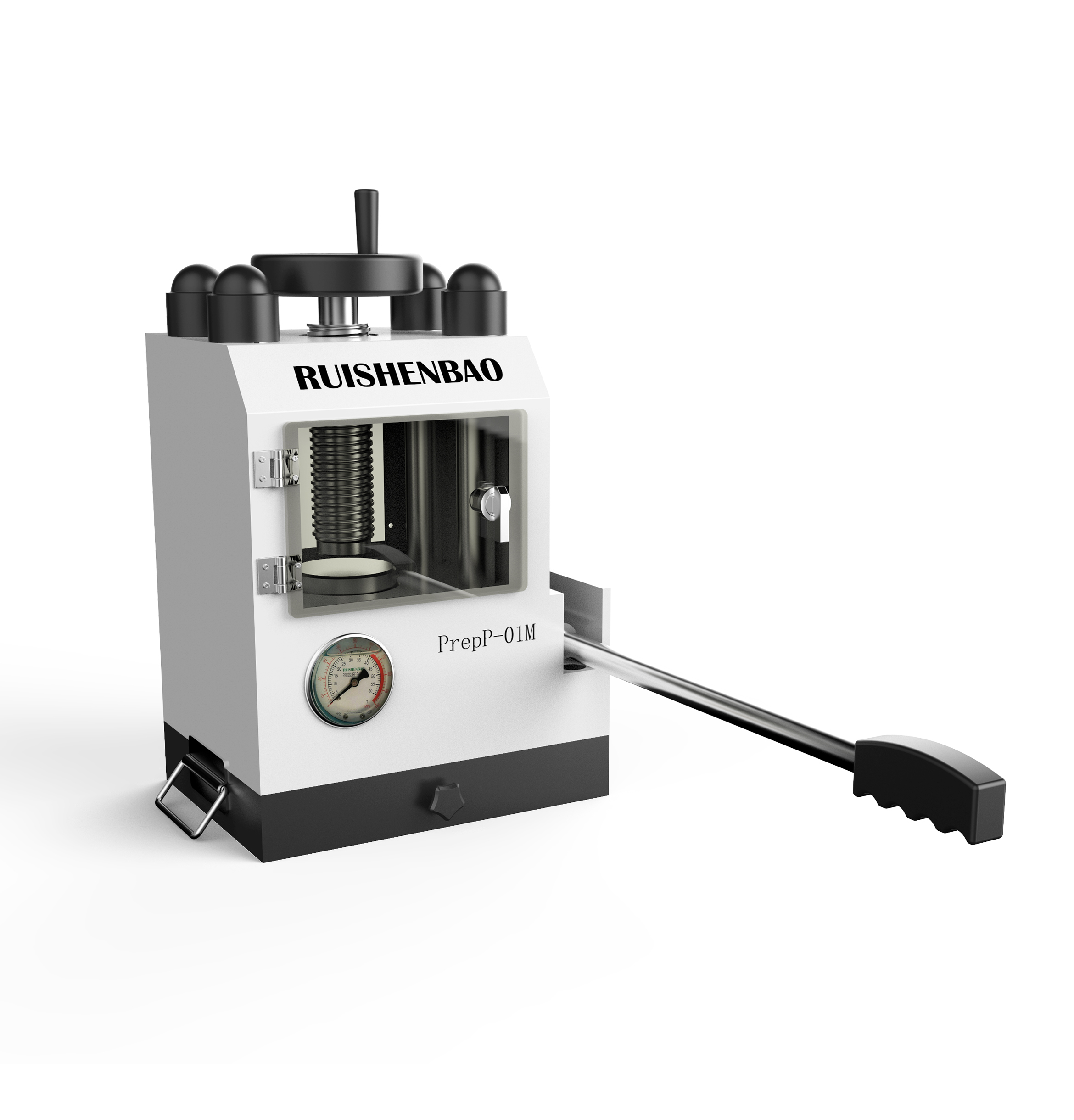

Manual Pellet Press: PrepP-01M
  • Picture 1
  • Picture 2
  • Picture 1
  • Picture 2

Overview:

Solid, high-quality pellets are an important precondition for reliable and meaningful XRF analysis. The PrepP-01M is a manually operated hydraulic pellet press with particularly simple and safe operation for the preparation of solid samples for X-ray fluorescence analysis or infrared spectroscopy. The pellets produced are of high quality and are characterized by their high degree of stability. The piston pressure can be read off from the clearly visible manometer scale.

Features:

Compact bench-top machine for X-ray and IR sample pelletizing;

Maximum pressure 40T, with produce high quality and stability;

Easy and safe operation;

Practical for in-lab application;

Equipped with pressing tool made of superhard and wear-resistant special steel, long service life.

Fields of application:

Geology: ore, dust, slag;

Kiln: cement, limestone, dolomite, glass, quartz, clay;

Iron & steel: iron ore, coal, converter slags, blast furnace slags, electric furnace slags;

Nonferrous: alumina, bauxite, copper ore;

Chemicals: catalyst, polymer;

Soil: rock, various soils;

Research Institutes: manufacture of reference materials.

For more information, please contact us by email: info@ruishenbao.com

Technical Data:



Model

PrepP-01M

Maximum pressure

40T, hydraulic press with manual operation

Pressure force

0~40T

Operating temperature

0~40℃

Precision of pressure adjust

0.1T

Hydraulic oil

Antiwear hydraulic oil 46#

Dimensions(L×W×H)

300×250×600mm

Net weight

50kg
